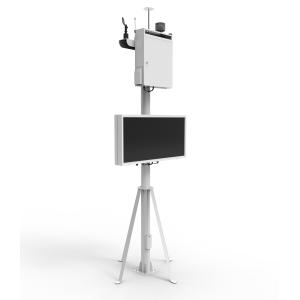

Temperature Humidity 1% Noise 130db Online Dust Monitoring System
Quick Details of Online Dust Monitoring System
Online Dust Monitoring System inspect environmental air quality,
including of the Dust, Noise, Meteorological factors, etc. large
measuring range, long working life and easy operation, etc. The
measurement data could display on the LED screen. dust TSP pm2.5
pm10 detector noise and wind speed monitor system .
Surveillance Camera, Wireless or wired Transmission, Background
Data Processing System and Information Supervisory Platform.
For the measurement data, the platform with the function of alarm
processing, record, query, statistics, report output, etc.
Could inspect the environmental quality 24 hours continuously or
timing-inspection; GPRS and RS485 communication optional; The
meteorological factors could choose to connect: Temperature,
Humidity, Wind direction, Wind speed, Pressure, etc.
The shell material available for the all bad environment,
dust-proof, rust-proof and moisture-proof; The protection grade is
IP65; Available to connect with the information supervisory
platform(optional); Easy installation and operation PM2.5 pm10
detector
Parameters of Online Dust Monitoring System
| Component name | Range | Resolution | Accuracy |
| Temperature sensor | -45-80℃ | 0.1℃ | ±0.5℃ |
| Humidity sensor | 0-100% | 1% | ±3% |
| Wind speed sensor | 0-60m/s | 0.1m/s | ±0.3m/s |
| Wind direction sensor | 16 bearing | 1° | ±3° |
| Noise sensor | 30-130db | 0.1db | ±0.5%F.S |
| PM2.5, PM10, TSP | 0-10000ug/m³ | 1ug/m³ | ±10%F.S |
| Light | 1-65535Lux | -45-80℃ | / |
Online Dust Monitoring System Features
Monitored Parameters: PM2.5, PM10, TSP, temperature, humidity, wind
speed, wind direction, atmospheric pressure, noise, light
Communication mode: Wired/wireless transmission
LED: 54*102cm
Equipment support: 2m/3m poling(can be selected)
Relay output: 3 wire, Connected to the secondary relay xxxxx
Systerm composition:
* Transmission layer: various monitoring data are transmitted by
wired and wireless means.
* Platform layer: data service cloud platform, relying on the data
of dust and noise monitoring platform under construction, carries
out systematic analysis, provides cross-region, full-time and
multi-level data mining and comparison, and provides data support
for scientific haze control.
*Application layer: for different environmental protection bureau,
construction site client system, realize web-based real-time
monitoring of pollution sources online data, on-site video
monitoring, pollution sources exceed the standard alarm, as well as
various management and statistical analysis for different
management.
Details of Online Dust Monitoring System
